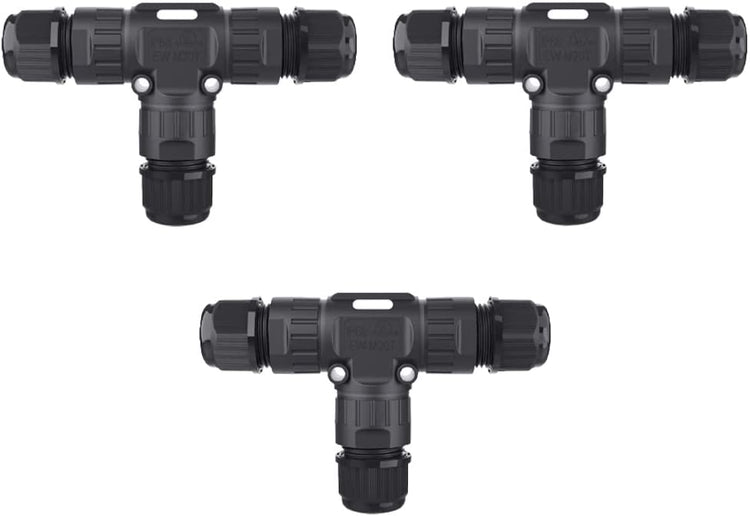

3 Way IP68 Waterproof Electrical Junction Box for Cables Ø 5-12 mm, UL Listed, Pack of 3
- Regular price
- $18.99
- Regular price
-
$18.99 - Sale price
- $18.99
- Unit price
- per
Couldn't load pickup availability
GXILEE Waterproof Junction Box 3-way Product Specifications :
Protector Level: IP68(Recommend to immerse it in water within 2.0meters)
Certification: CE, ROHS UL
Max current: 24A
Max voltage: 500V
Working temperature: -20° C - 110° C

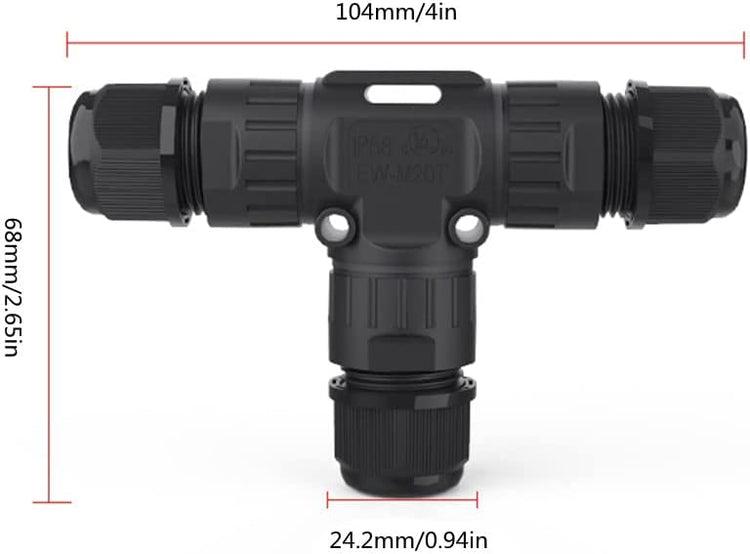

Size: Approx. 104x68mm (L*D)
Apply to wire diameter:Ø0.5-2.5 mm²(AWG24-13)
Suit for cable diameter 5-12 mm
Wire stripping length:8-10mm
Cable Connector Type: Screw Fixed
Material: body-nylon PA66; contact-brass;sealing element-silicon
Widely used for garden lamps, patio lights, and other outdoor LED lights, underwater engineering, underground engineering, mining engineering, solar panel system, and electrical wire connecting.

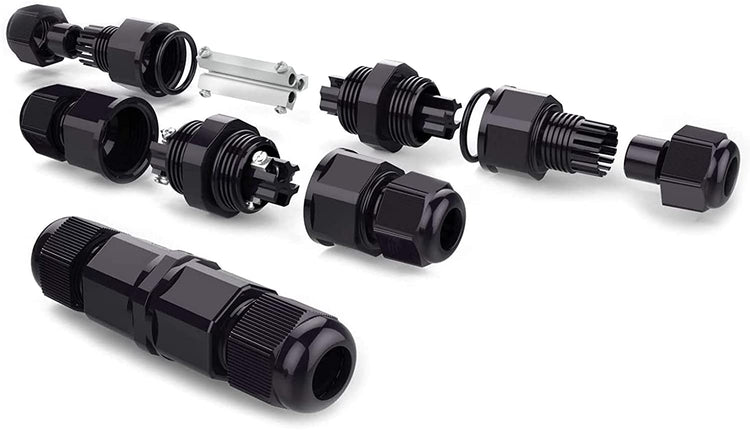

Package Content :
3 x 3-way Waterproof cable connector(apply to cable:Ø5-8mm)
9 x Thick grommet(apply to cable:Ø9-12mm)
Protector Level: IP68(Recommend to immerse it in water within 2.0meters)
Certification: CE, ROHS UL
Max current: 24A
Max voltage: 500V
Working temperature: -20° C - 110° C
Size: Approx. 104x68mm (L*D)
Apply to wire diameter:Ø0.5-2.5 mm²(AWG24-13)
Suit for cable diameter 5-12 mm
Wire stripping length:8-10mm
Cable Connector Type: Screw Fixed
Material: body-nylon PA66; contact-brass;sealing element-silicon
Widely used for garden lamps, patio lights, and other outdoor LED lights, underwater engineering, underground engineering, mining engineering, solar panel system, and electrical wire connecting.
Package Content :
3 x 3-way Waterproof cable connector(apply to cable:Ø5-8mm)
9 x Thick grommet(apply to cable:Ø9-12mm)
